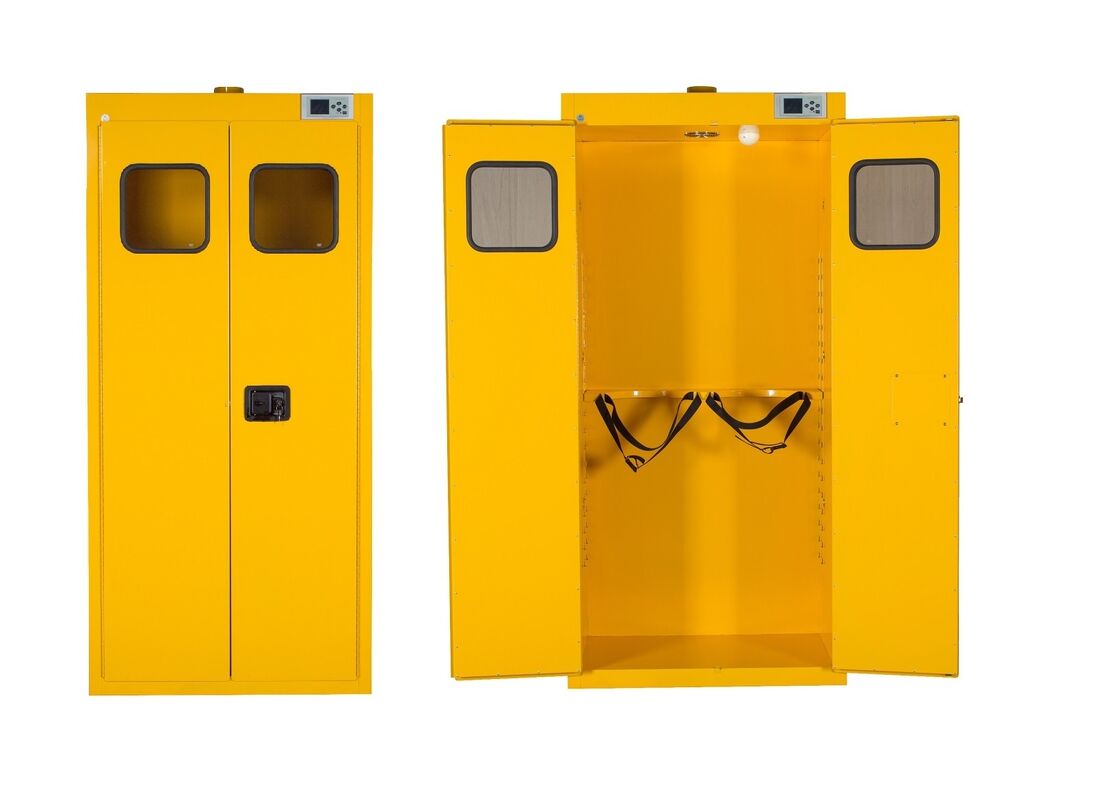

Gas Cylinder Storage Cabinet 75 mm 1-4 Cylinders

Gas Cylinder Storage Cabinet

The SUPER Gas Cylinder Storage Cabinet is a professional safety enclosure designed for the compliant storage of compressed gas cylinders in laboratories and industrial environments. Manufactured from high-quality cold rolled steel and finished with corrosion-resistant epoxy powder coating, the cabinet provides reliable protection against fire exposure, gas leakage, and accidental cylinder movement.

With standardized dimensions and configurations supporting 1 to 4 gas cylinders, the cabinet enables facilities to scale gas storage capacity while maintaining a unified layout and safety standard across laboratories and gas rooms.

Key Features & Safety Advantages

Heavy-Duty Steel Construction

The cabinet body is formed from cold rolled steel (CRS) plates, treated with acid pickling and phosphating passivation. This surface treatment, combined with epoxy powder electrostatic spraying, ensures long-term resistance to acid, alkali, and corrosion, making it suitable for demanding laboratory environments.

Intelligent Gas Detection & Alarm System (Optional)

The cabinet can be equipped with gas detectors capable of identifying multiple gas types, including flammable gases and specialty laboratory gases such as hydrogen, methane, acetylene, carbon monoxide, ammonia, chlorine, and hydrogen sulfide.
Once gas concentration reaches the preset threshold, the alarm system is automatically activated to alert personnel.

Automatic EX Exhaust Ventilation

When gas leakage is detected, the top-mounted EX exhaust fan is triggered automatically. Gas is discharged safely through a 75 mm exhaust vent and external pipeline, effectively preventing gas accumulation inside the cabinet and surrounding workspace.

Stable and Secure Cylinder Fixation

Each cabinet includes fixed safety belts to keep gas cylinders securely positioned, reducing the risk of tipping or movement during storage and daily operation.

Technical Specifications

Standard Models & Dimensions

Material & Surface Treatment

• Cabinet body: Cold rolled steel (CRS)

• Surface process: Acid pickling + phosphating passivation

• Coating: Epoxy powder electrostatic spraying

Structural & Functional Details

• PASS holes on both sides for continuous airflow

• Removable linkage doors with viewing window

• Flush-mounted high-strength handles

• Optional fold-down ramp for easy cylinder loading and unloading

• Easy assembly, maintenance, and transportation

Applications

The SUPER Gas Cylinder Storage Cabinet is suitable for a wide range of controlled environments, including:

• Chemical and analytical laboratories

• Research institutes and universities

• Pharmaceutical and biotechnology facilities

• Industrial gas storage rooms

• Electronics and semiconductor manufacturing

Special-purpose alarm devices can be customized according to specific gas storage requirements, providing enhanced safety for high-risk gases.

Why Choose SUPER

By integrating robust steel construction, multi-gas detection capability, and automatic exhaust ventilation, SUPER Gas Cylinder Storage Cabinets deliver a balanced solution for safety, compliance, and operational efficiency. The standardized dimensions and modular capacity design make them easy to deploy across facilities while supporting long-term safety management goals.
